Developed in close collaboration with roofing professionals, ONROLL is built for the real-world challenges you face every day—whether you’re on a crowded urban rooftop or a remote install. Precision, speed, and jobsite ready durability are all part of the package.
Upplýsingar

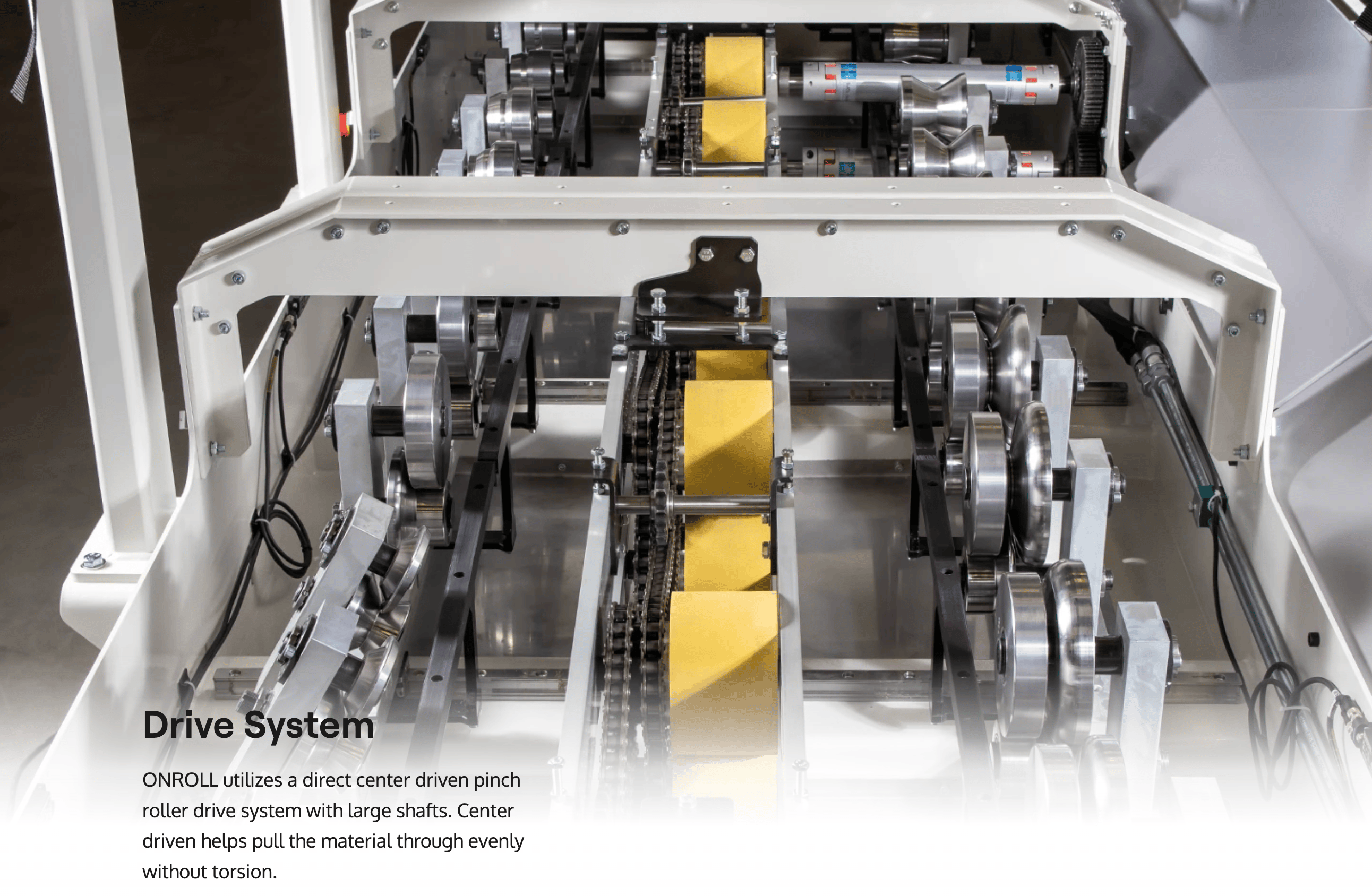

Drive System
ONROLL utilizes a direct center driven pinch roller drive system with large shafts. Center driven helps pull the material through evenly without torsion.
Panel Width Adjustment
ONROLL has a truly symmetrical width adjustment on both sides of the drive rollers, making infeed easy and quick. Precision linear rails with a high-pitch lead screw ensure parallel positioning of the tooling based on the width of the panel, with no off-center side loading. The tooling is free-rolling; the center neoprene rollers drive the material through ONROLL to minimize torsion in the panel.
Power
Machine can come either Briggs & Stratton Vanguard 14HP Gas Powered, 230 Volt Single Phase, 230 Volt 3 Phase, or 400/460V 3 phase Electric Motor. Power units can be quickly changed in less 5 minutes
Tooling
Tooling is made from stainless steel for long lasting with a 5 year warranty.
Exit Shear
Post shear is made of tool steel for maximum life.
Safety
ONROLL is built with operator safety in mind, ensuring secure and reliable performance on every jobsite.
Decoiler
2 Decoilers are standard on the ONROLL. Each with 1360 kg capacity. Adjustable tension lock enables coil to decoil, but no over spill when machine pulls decoiler.

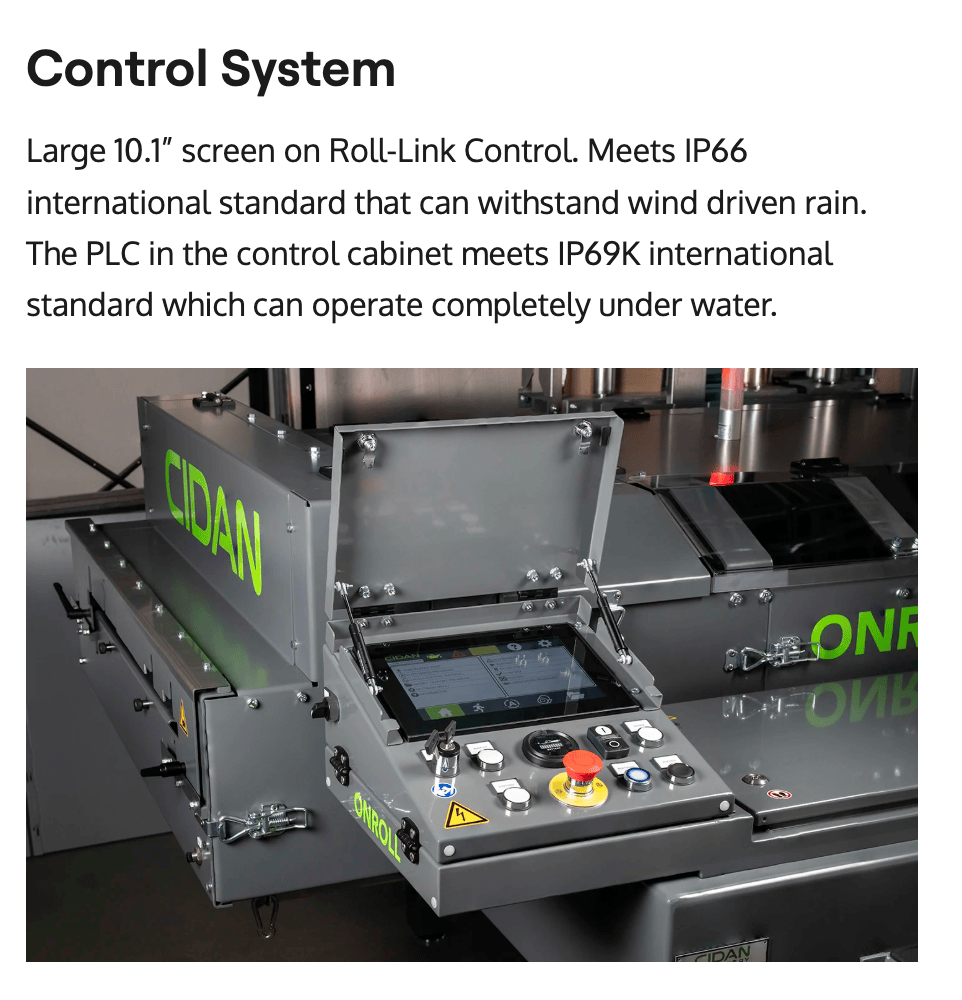

Control System
Large 10.1” screen on Roll-Link Control. Meets IP66 international standard that can withstand wind driven rain. The PLC in the control cabinet meets IP69K international standard which can operate completely under water.
