CIDAN F

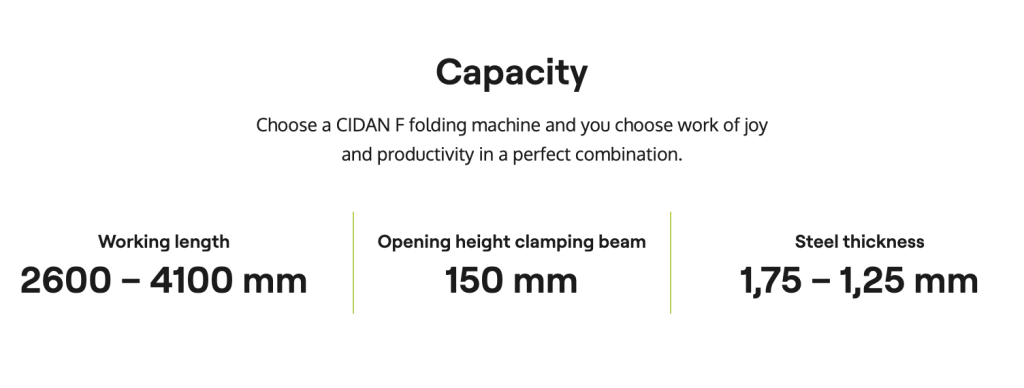

CIDAN F folding machine is fast, user-friendly and reliable. The new construction is robust with welded sides, extra strong lower beam and clamping beam. The generous 150 mm opening height and the generous beam openings allow greater flexibility.

The folding beam comes in three different widths, offering the best result for any profile and material, with keyholes for fast changes. The strong but compact folding beam makes the operator’s work easy and the entire process is speeded up as the clamping beam opens before the folding beam is back in place.

Choose a CIDAN F folding machine and you choose work of joy and productivity in a perfect combination.

  • Fast, user-friendly and reliable.
  • Adjustable crowning for perfect folding results regardless of length and material thickness.
  • Two folding beam rails as standard, 7/10 mm and 15 mm.
  • 10–16 gauging rails depending on back gauge type and working length. Click here to read more about our back gauges.
  • Choose between two different control systems: Easy Link or ProLink W.

✉ protaekni@protaekni.is
✆ +354 8678923

Upplýsingar

CIDAN F folding machine is fast, user-friendly and reliable. The new construction is robust with welded sides, extra strong lower beam and clamping beam. The generous 150 mm opening height and the generous beam openings allow greater flexibility.

The folding beam comes in three different widths, offering the best result for any profile and material, with keyholes for fast changes. The strong but compact folding beam makes the operator’s work easy and the entire process is speeded up as the clamping beam opens before the folding beam is back in place.

Choose a CIDAN F folding machine and you choose work of joy and productivity in a perfect combination.

  • Fast, user-friendly and reliable.
  • Adjustable crowning for perfect folding results regardless of length and material thickness.
  • Two folding beam rails as standard, 7/10 mm and 15 mm.
  • 10–16 gauging rails depending on back gauge type and working length. Click here to read more about our back gauges.
  • Choose between two different control systems: Easy Link or ProLink W.
Category: Tag:

Upplýsingar

  • Control system EasyLink, with touch screen for input and storage of folding operations
  • Clamping beam with divided straight rail 30°
  • Lower beam rail
  • Double sided folding beam rail 7/10 mm (.275″/.394″), with quick change tooling
  • Folding beam rail 15 mm (.59″), with quick change tooling
  • Adjustable crowning of folding beam rail
  • Foot pedal

Viðbætur

  • XSPACE – More space, more profiles – CIDAN XSPACE gives you far greater freedom to design and fold your profiles. XSPACE is the folding beam with an indented angle below the folding point giving you extra space  around the tools. You can now easily make profiles that were previously difficult or impossible to fold and without risk of collisions. The 15 mm extra space below the folding beam rail allows you to fold trapezoid profiles, z-profiles and hat profiles. There is no need to “force” the material into the machine, ergonomics are improved and safety increased. You get higher precision with no effort. All the machine’s features function as normal. The XSPACE-beam is of course equipped with crowning for zero angle deviations for long profiles. All machines in the F-serie can be equipped with XSPACE and there are three different folding beam rails: 10, 12 and 25 mm. Enjoy greater freedom with extra space around the folding beam, XSPACE gives you all the space you need.
  • Control system ProLink W
  • 21.5″ widescreen
  • Motorized back gauge FLEXIBLE
  • Motorized back gauge EGS
  • Steel ball transfer
  • Brushes in the table
  • Solid front fingers
  • Squaring arm
  • Extra foot switch
  • Offline software
  • Movable foot pedal on rail
  • Radius Nose Bar
  • Hardened tooling
  • Folding beam rail
  • Roller shear (F41)
  • XTAP – conical bending
  • Manual conical bending

Eiginleikar

Model Folding length Folding capacity Opening height Outer dimensions Weight Motor
mm
(“)
Steel
mm (ga)
Stainless steel
mm (ga)
Aluminum
mm (“)
Clamping beam
mm (“)
Lenght
x Width
x Height
mm (“)
kg
(lbs)
Clamping beam
kW (hp)
Folding beam
kW(hp)
F26 2600
(102)
1.75
(15)
1.1
(19)
2.6
(0.102)
150
(5.9)
3658 (144) x
1545 (61) x
1590 (63)
3100
(6834)
0.75 (1) 1.5 (2)
F32 3200
(126)
1.5
(16)
0.9
(21)
2.2
(0.087)
150
(5.9)
4258 (168) x
1545 (61) x
1590 (63)
3300
(7275)
0.75 (1) 1.5 (2)
F41 4100
(161)
1.25
(18)
0.8
(22)
2.0
(0.078)
150
(5.9)
5158 (203) x
1545 (61) x
1590 (63)
4100
(9040)
1.0 (1.35) 2.2 (3)

Myndbönd

Bæklingur

cidan-catalogue-2018-en
