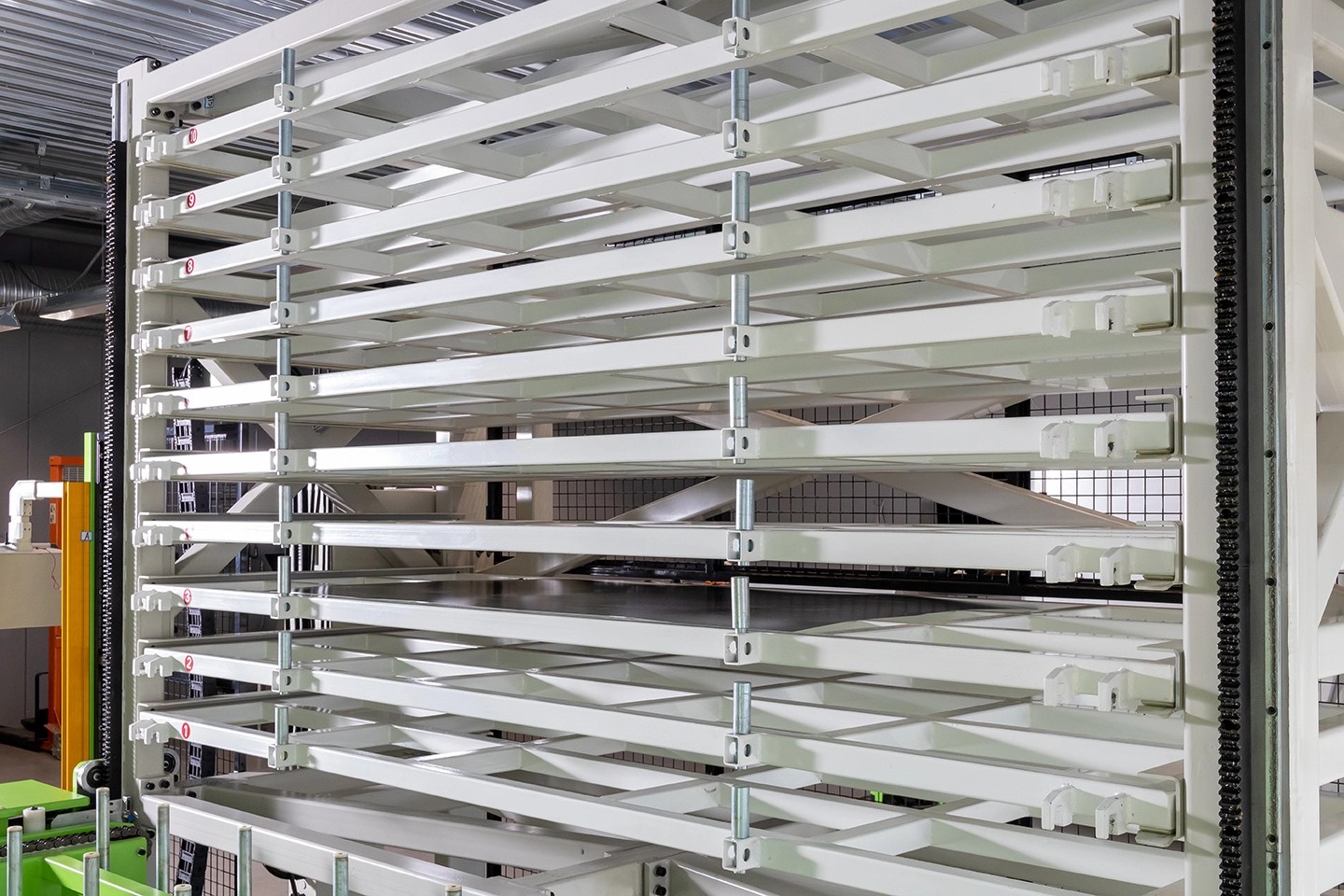

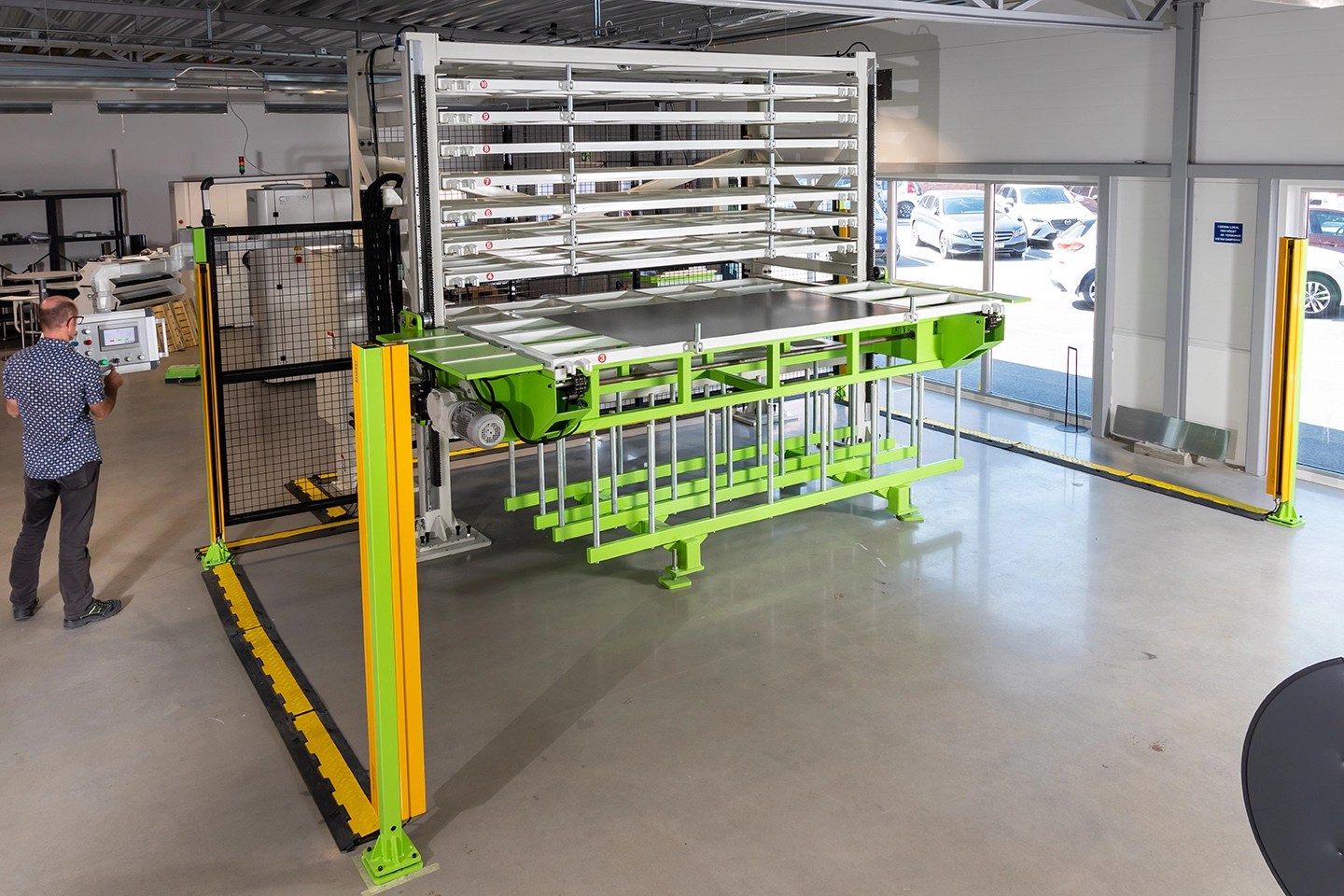

CIDAN STACKMASTER – flat sheet storage. Stackmaster meets your needs in 10, 15 or 20 tray high storage. The control system keeps track of different sizes, qualities and colors stored in the different trays. Choose desired material via the control panel and STACKMASTER delivers correct material. Then you just easily move the sheet to next working operation. Works perfectly well for them who only buys already cut flat sheets as well as for those who produces own flat sheets with a cut-to-length line. The CIDAN Stackmaster Flat sheet storage gives you a good overview of your flat sheets inventory!
CIDAN STACKMASTER – flat sheet storage. Why do you need one?
Flexible & speedy – You have laser cut / punched blanks, low order quantities and short lead time requirements? A STACKMASTER close to your folding machine will do the trick!
Space-saving – Flat-sheet-bundles all over the place? Stack them high in a STACKMASTER, in a small place!

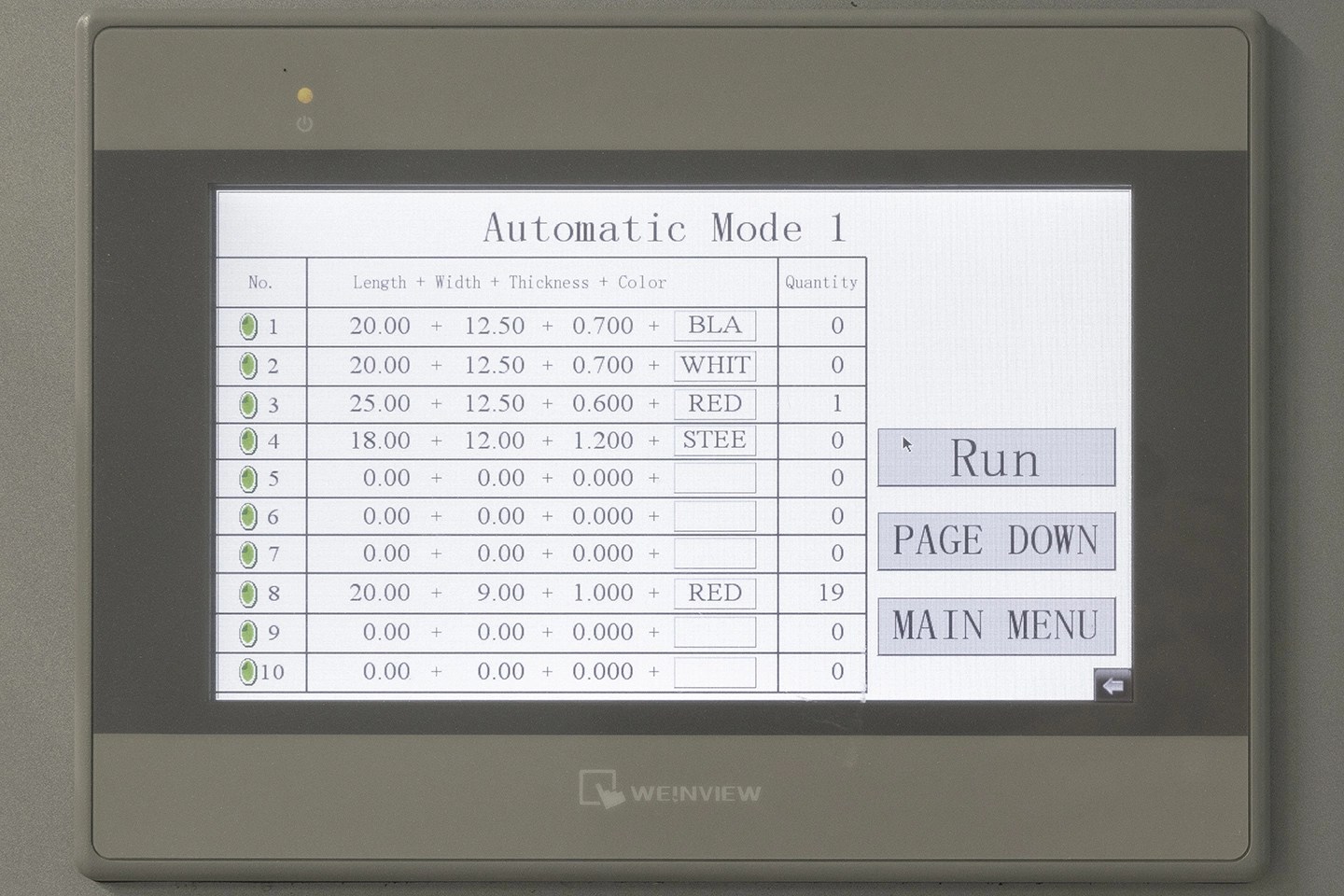

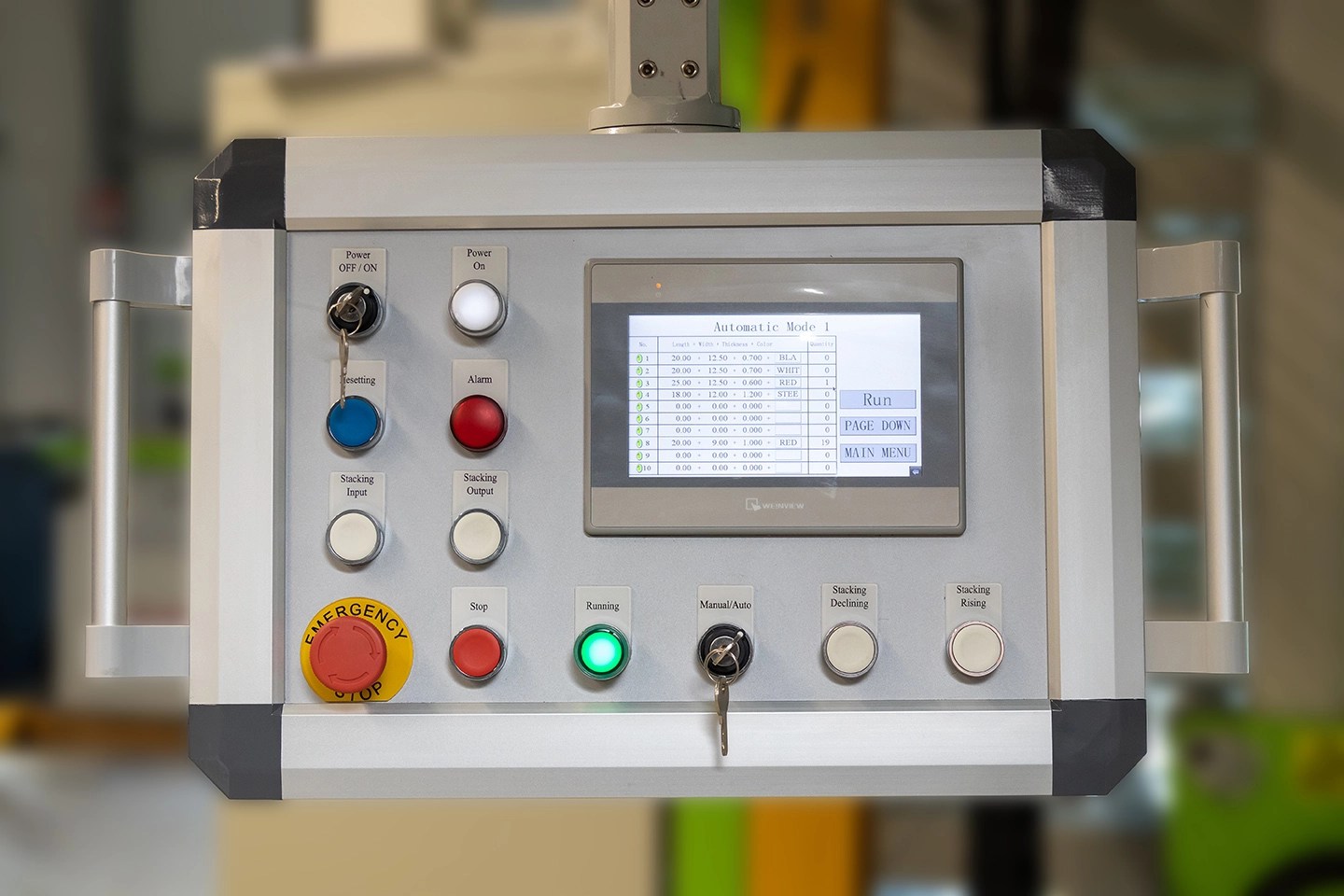

Good overview – With the control on the machine you keep track of all your sheets and they are all stored in one place, simple and precise inventory.
Your forklift for other things – You have a manual stacking tower, but need a forklift every time you need a bundle? A STACKMASTER only needs a forklift when you fill it up…
Ramping up… – You want to automize, but not kill yourself with investment? Ramp up, step-by-step. First folding machine, then add a STACKMASTER and finally a robot controlling both machines. No need going to a fully automatic line in one go…
CIDAN STACKMASTER loads up to 3200 x 1500 mm sheets and it comes in five models:
- 10 trays 1000 kg, 3.2 m height
- 10 trays 2000 kg, 3.6 m height
- 15 trays 1000 kg, 4.2 m height
- 15 trays 2000 kg, 4.8 m height
- 20 trays 1000 kg, 5.2 m height
Upplýsingar
- 10 trays
- Max load 1000 kg per tray
- Up to 3200 mm long sheets
- Creates better structure of flat sheets
- Easy handling of flat sheets
- Eliminates heavy lifting
- Increases the control of inventory
Viðbætur
- Up to 20 trays
- Max 2000 kg per tray
- Up to 4400 mm long sheets
- Creates better structure of flat sheets
- Eliminates heavy lifting
Eiginleikar
| Model | Max load per tray | Number of trays | Max sheet size | Max loading height per tray | Lifting speed | Feeding speed trays | Height | Length | Depth | Lifting motor | Tray motor | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | pcs | mm | mm | m/min | m/min | mm | mm | mm | kW | kW | kg | |
| RFT-3200×1500/10 | 1000 | 10 | 1500 x 3200 | 100 | 10 | 9 | 3200 | 3600 | 4600 | 5 | 1.5 | 5900 |
| RFT-3200×1500/15 | 1000 | 15 | 1500 x 3200 | 100 | 10 | 9 | 4200 | 3600 | 4600 | 5 | 1.5 | 8300 |
| RTF-3200×1500/20 | 1000 | 20 | 1500 x 3200 | 100 | 10 | 9 | 5200 | 3600 | 4600 | 5 | 1.5 | 10200 |
| RTF-3200×1500/10 2T | 2000 | 10 | 1500 x 3200 | 120 | 10 | 9 | 3620 | 3600 | 4600 | 7 | 1.5 | 8000 |
| RTF-3200×1500/15 2T | 2000 | 15 | 1500 x 3200 | 120 | 10 | 9 | 4820 | 3600 | 4600 | 7 | 1.5 | 10000 |
